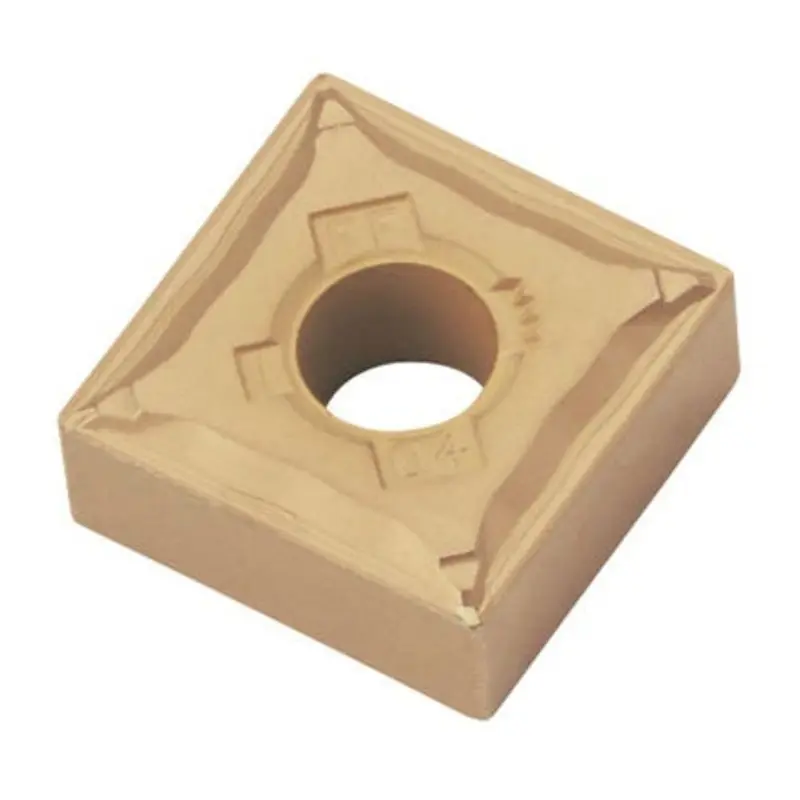

Kennametal SPMT09T308MP KCU10 ISO Turning Insert

Details

Turning insert with advanced multilayer PVD coating over a very deformation resistant unalloyed carbide substrate. The new and improved coating improves edge stability with wide range speed and feed capabilities. The KCU10 grade is ideal for finishing to general machining of most workpiece materials at a wide range of speed and feed capabilities. Excellent for machining most steel, stainless steel, cast irons, non-ferrous materials and super alloys with improved edge toughness and higher cutting speed or feed capability. Screw-On inserts are the first choice for I.D. turning of all materials and O.D. turning on small to medium lathes. Available in at top and chip control geometries with both moulded and ground peripheries. Suitable for all workpiece materials.

Brand :Kennametal

Style :SPMT-MP

Manufacturer Part Number :3744987.

Type :ISO Turning Screw-On Insert

Insert Hole Size (Decimal Equivalent) :0.1732

Insert Size :09

Features & Benefits : 90 square insert
11 insert clearance angle
Positive insert
Screw-on insert
Medium positive chip breaker
Beyond Drive grades included

Material :Carbide

Application :Medium

Coating/Finish :PVD

Grade :KCU10

ISO Number :SPMT09T308

Depth of Cut (mm) :0.4 – 2.3

Inscribed Circle :9.525 mm;0.375 in

Corner Radius :08

Chipbreaker :MP
